G2C Brief — DeepInfer: reading a production inference engine

Question this Brief answers: What happens to a language model between its weights and a million users, and how much of it did you already build?

On October 20, 2026, DeepSeek open-sourced DeepInfer, the inference framework behind its production DeepSeek V4.1-Flash service. Alongside the code it published a long deployment Q&A and a companion library, deepseek-recipe, that turns API requests into tokens and back. The Q&A says a single cluster serves 155 trillion tokens a day.

The release reverses an earlier decision. In April 2025 DeepSeek explained why it would not open-source its engine: it was an old, heavily customized vLLM fork, tightly coupled to internal infrastructure, and the team lacked bandwidth to maintain it. DeepInfer's README still credits vLLM as its starting point, and the release still holds back the most infrastructure-bound parts, but the engine itself is now public.

An inference engine sounds like pure systems engineering, and much of DeepInfer is. This Brief is not a tour of the repository. It reads DeepInfer for the places where something you built in g2c shows up again at production scale and has to change to survive there:

1. The decode loop from Module 11 and Module 16, rewritten to serve a batch instead of one sequence.
2. Module 16's KV cache, turned into a memory system with pages, sharing, and storage tiers.
3. Module 11's sampler, made reproducible when thousands of requests share a GPU.
4. Speculative decoding from Beyond: speculative decoding, with a verification budget chosen by expected value.
5. The grammar mask from Module 18 and the special tokens from Module 04, at the boundary where untrusted text becomes tokens.

The model itself is covered in the DeepSeek V4.1-Flash Brief. You don't need it to read this one, and this Brief does not re-explain the architecture.

---

Snapshot

Subject	DeepInfer, DeepSeek's production inference framework, plus the deployment Q&A published with it
Primary sources	DeepInfer repository (Apache 2.0) at commit 774ce24; its README and deployment Q&A; deepseek-recipe (MIT)
Supported model	DeepSeek-V4.1-Flash-1017 only
Supported hardware	NVIDIA SM100 GPUs and Huawei Ascend 950 NPUs. The smallest efficient deployment the Q&A describes is 64 GPUs for prefill plus 64 for decode.
What is released	Offline (batch) inference: kernels, model runtime, scheduler, sampler, speculative decoding, structured outputs
What is not released	The KV cache storage system, the load balancers, and the plumbing that separates prefill, decode, and vision encoding onto different machines. The Q&A describes these; a Zhihu blog post (in Chinese) covers them in more depth.
Size	About 55,000 lines of Python plus a C++ scheduler and engine core (Derived, counted from the checkout)
Last verified	October 20, 2026, against commit 774ce24

The labels follow the standard Brief meanings, with one note specific to a code release:

• Reported: a claim from DeepSeek's README or Q&A. Every performance and business number in this Brief is self-reported. Nobody has independently reproduced them yet, and doing so needs the hardware above.
• Derived: either arithmetic from disclosed values, or a statement read directly from the released code. A file link is given in either case.
• G2C interpretation: the course's reading of why a design choice was made, when the source doesn't say.
• Not disclosed: details the release does not include.

---

The change of perspective: from one sequence to a batch

Here is the generation loop you wrote. It is generate_cached from Module 16, reduced to its skeleton:

cache = empty
for token in prompt:                     # the prompt, one token at a time
    logits, cache = model.forward_cached(token, cache)
for step in range(max_new_tokens):
    next_id = sample(logits)             # Module 11's warpers, then multinomial
    if next_id == eos: break
    logits, cache = model.forward_cached(next_id, cache)

It serves one user, and everything in it belongs to that user: the cache, the random generator, and the GPU. A serving engine runs a different loop. Every step advances every active request by one token (or several, with speculation), and requests join and leave between steps:

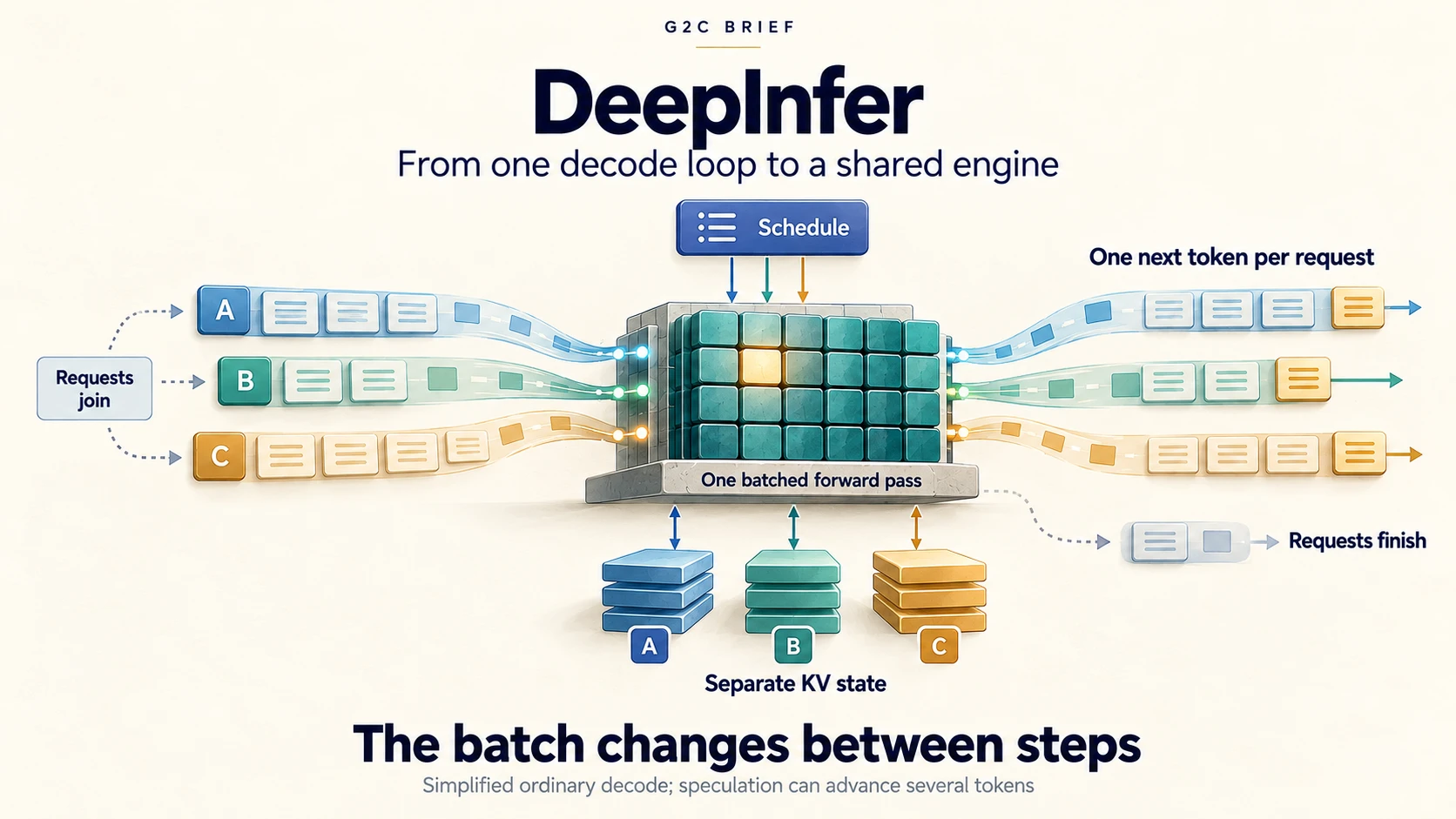

             ┌──────────────────── one engine step ─────────────────────┐
  waiting ──►│ schedule:  which requests run, how many tokens each,      │
  requests   │            where their cache blocks live                 │
             │ forward:   one batched pass over all of them              │──► finished
             │ sample:    one token (or a verified prefix) per request   │    requests
             │ process:   append tokens, check stop conditions, stream   │
             └──────────────────────────────────────────────────────────┘

This is often called continuous batching. DeepInfer's scheduler (csrc/engine/scheduler.hpp) is about 1,300 lines of C++ that answer the first box's question every step.

G2C interpretation. Almost every change in this Brief follows from that one shift. Once many users share a forward pass:

• the cache has to be managed like memory, because thousands of caches of different lengths compete for the same GPU;
• sampling has to be reproducible without a private random generator per user;
• speculative decoding has to budget verification work across everyone in the batch;
• and the CPU work around each step has to be hidden, because the GPU now waits for everyone's bookkeeping.

The rest of the Brief takes these one at a time.

---

1. Prefill and decode are different jobs

Module 16 splits a request into prefill, one parallel pass over the whole prompt, and decode, one token per step. Prefill reuses each weight it reads across every prompt token, so it is limited by arithmetic. Decode streams every weight again for a single token, so it is limited by memory bandwidth. On a laptop you measured that gap for one request: ProdLM's prefill and decode rates, and your own model's one-pass prefill against generate_cached's token-by-token loop.

A server adds the other dimension: many requests at once. DeepInfer's two published benchmark charts show what happens to each phase as the batch grows.

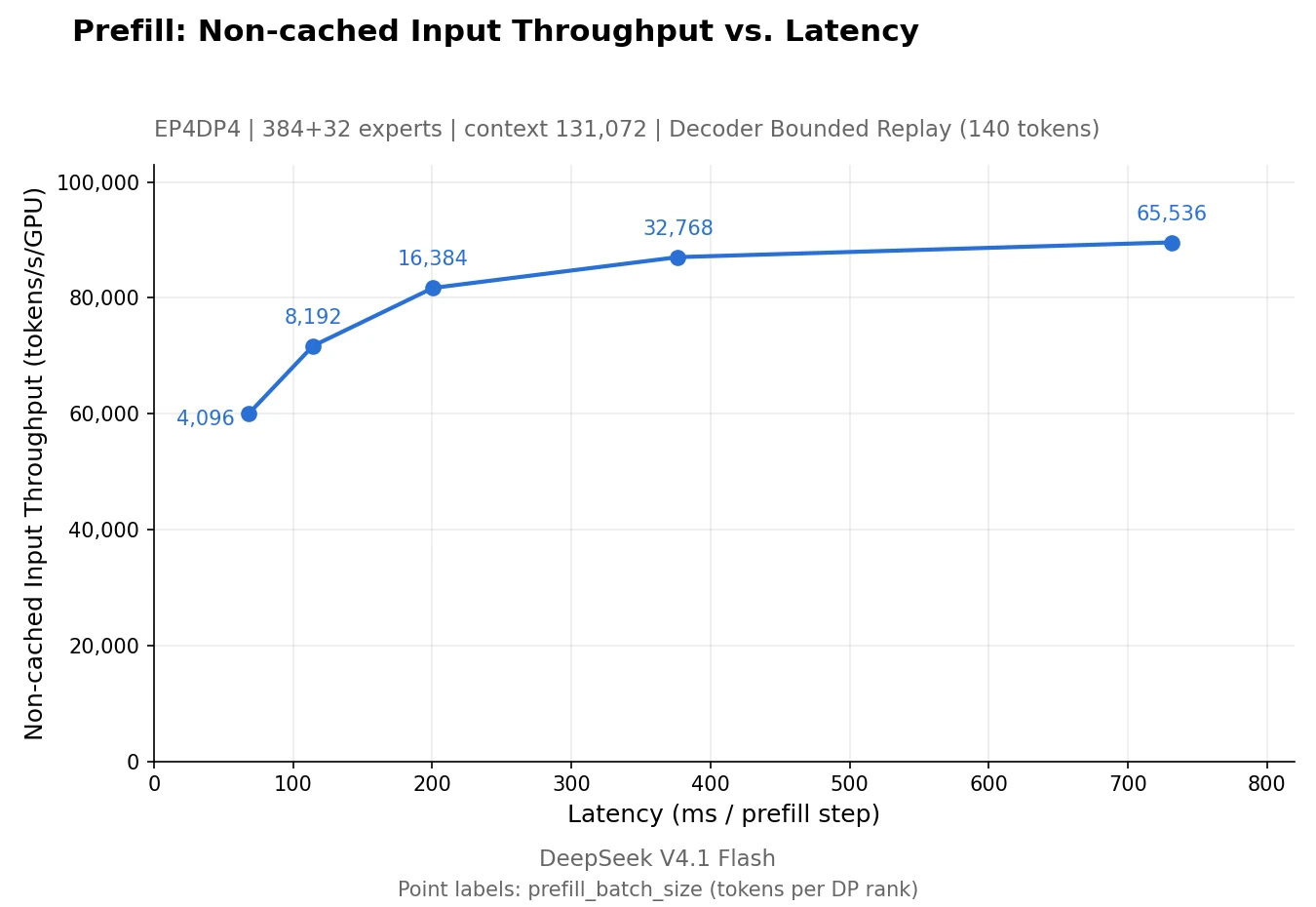

Prefill saturates early. Reported: DeepInfer's prefill benchmark on 4 SM100 GPUs at 131K context (chart from the DeepInfer repository, Apache 2.0). Derived (read off the chart): 16× more tokens per step buys only about 1.5× more throughput, at about 11× the latency.

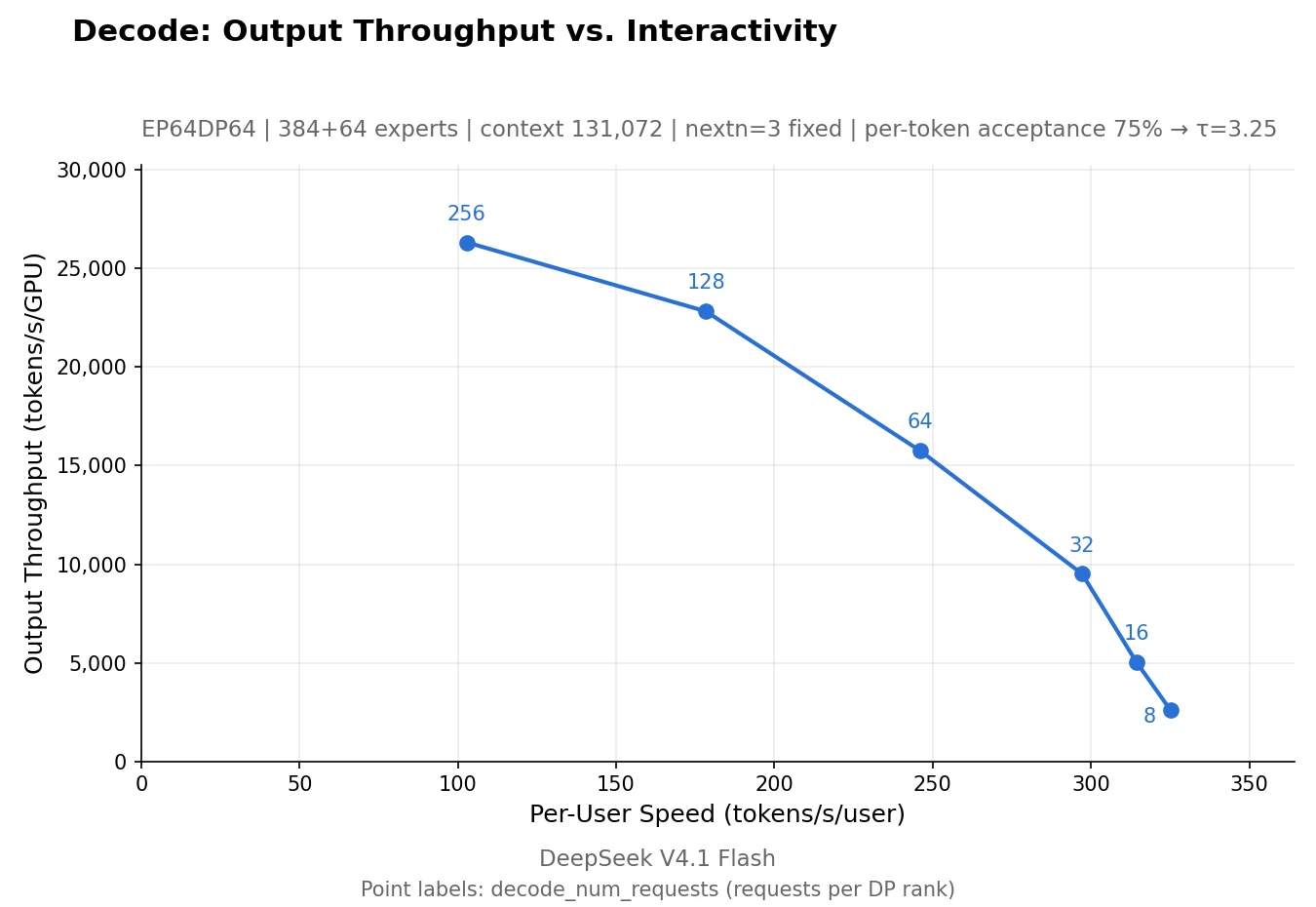

Decode is a trade between throughput and each user's speed. Reported: DeepInfer's decode benchmark on 64 SM100 GPUs at 131K context (chart from the DeepInfer repository, Apache 2.0). The chart's token counts depend on an assumed speculative acceptance rate, discussed under Reading the numbers.

Derived (read off the charts, so approximate). Divide per-user speed by the chart's stated tokens per step (3.25) to get engine steps per second, then invert to get step time:

Requests per GPU	Per-user speed	Step time	Throughput per GPU
8	~325 tok/s	~10.0 ms	~2,600 tok/s
64	~246 tok/s	~13.2 ms	~15,700 tok/s
256	~103 tok/s	~31.6 ms	~26,300 tok/s

Going from 8 to 64 requests makes each step only about a third slower, so throughput rises about 6×. That is what "memory-bound" means in practice: the weights have to be read once per step whether one request uses them or 64 do, so extra requests are almost free until the arithmetic finally catches up. Prefill has no such headroom. Its arithmetic is already the bottleneck at a few thousand tokens.

Reported. DeepSeek takes this all the way to separate machines. Prefill runs on ordinary 8-GPU servers with 2–8-way parallelism. Decode runs on 64–128 GPU "supernodes" with as much parallelism as possible ("Wide-EP"), because the more GPUs share the expert weights, the less each GPU has to stream per step. A request is prefilled on one machine, and its cache is shipped to a decode machine to continue.

Prefill also has to be sliced. A 200,000-token prompt can't monopolize a GPU while other requests wait, so the scheduler runs chunked prefill: a long prompt is processed in pieces, at most max_num_batched_tokens per step (Derived, from the scheduler). Reported. In production each prefill step gets a time budget. A fitted quadratic cost model, cost(q, c), predicts how long a chunk of q new tokens takes on top of c already-cached tokens, and the scheduler solves for the largest chunk that fits. It is quadratic because attention work grows with both the chunk and the prefix it attends to, which is the T² from Module 07 coming back as a scheduling constraint.

---

2. The KV cache becomes a memory system

Your Module 16 cache is one growing tensor per layer, extended by concatenation each step. For one user that's the right design. A server can't do it. Concatenating thousands of caches of different lengths means constant reallocation and fragmented GPU memory. The alternative of reserving max_seq_len for every request wastes most of the reservation. Module 16's own example makes the point: a 7B model reserving 2,048 positions holds 1.07 GB per request, whether the request uses 2,048 tokens or 50.

Pages, reference counts, and copy-on-write

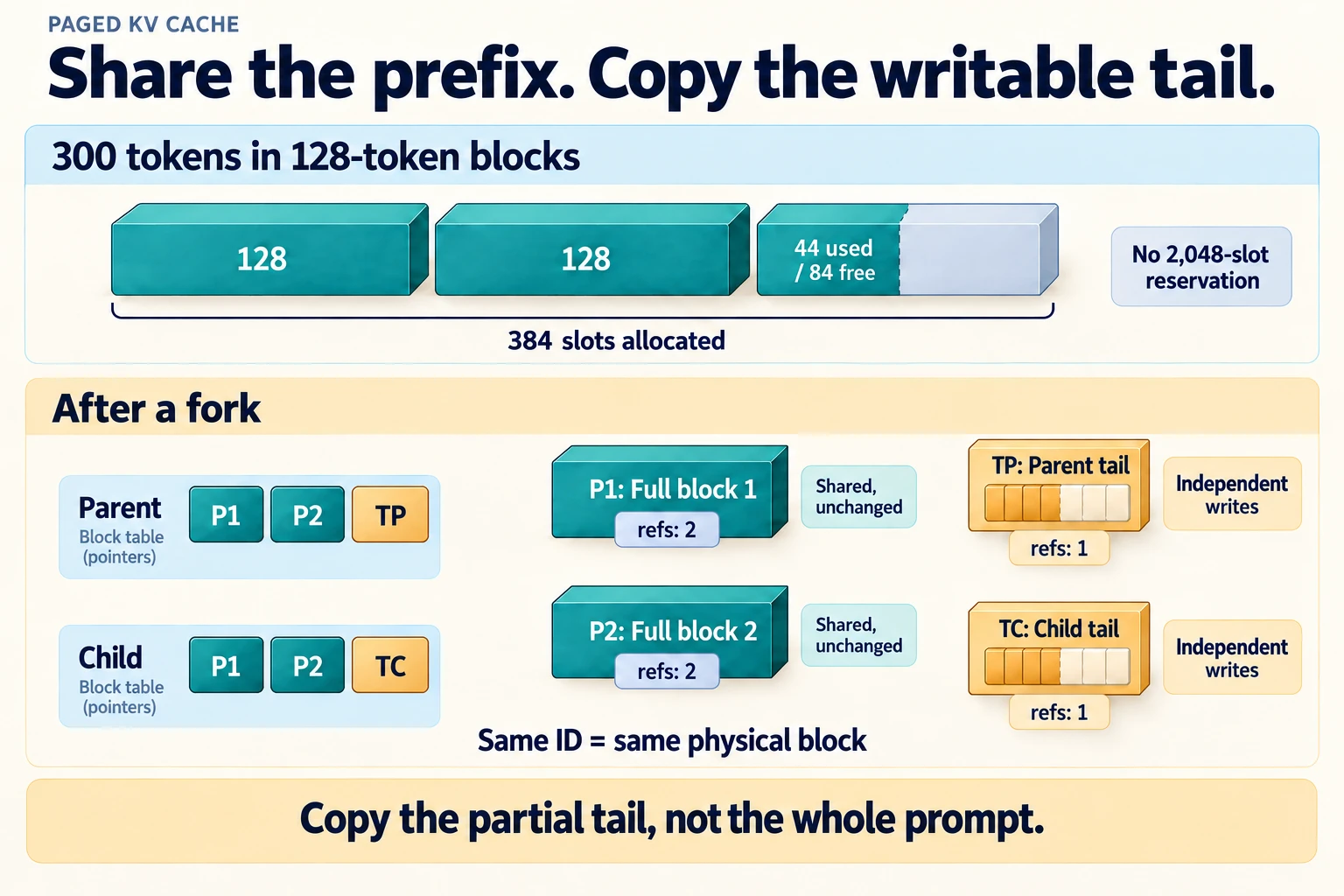

DeepInfer does what operating systems do with RAM. GPU cache memory is cut into fixed-size blocks (128 tokens for V4.1-Flash), and each request keeps a block table listing the blocks that hold its cache, in order. The block manager (csrc/engine/block_manager.hpp) is about 240 lines: a free list, plus a reference count on every block (Derived, from the code).

Derived. A 300-token request in a 2,048-slot reservation uses 15% of it. In 128-token blocks it holds three blocks (384 slots) and uses 78% of them. The waste per request is now under one block, regardless of max_seq_len.

Reference counts make sharing cheap. When the engine forks a sequence (to draw several samples from one prompt, say), the child's block table points at the parent's blocks, and each shared block's count goes up. Only the last, partly-filled block is copied, because both sequences are about to write into it. A scheduler comment (in Chinese) describes it as the last, "possibly half-written" block (Derived, from scheduler.hpp). That's copy-on-write.

G2C interpretation. This is how a server makes Module 11's best-of-N affordable. DeepInfer's own evaluation scripts draw 32 samples per AIME problem. With forks, the prompt's cache is computed and stored once and shared 32 ways, not 32 times.

Paging makes two savings visible. Derived: a block table orders a request's cache without requiring contiguous storage; after a fork, both tables point to the same full prefix blocks. Only the partial tail is copied for independent writes. The 300-token example counts token slots, not bytes.

A cache that outlives the request

Reported. DeepSeek keeps caches long after a request ends, so that the next turn of a conversation, or the next step of an agent, can skip prefilling the shared prefix. One of the system's three stated design goals is to retain KV cache for more than 72 hours. The tiers:

What	Where	Lifetime
Live requests' cache blocks	GPU memory	while the request runs
Sliding-window (local attention) state	host memory on the machine that produced it	short; looked up through an in-memory directory
Global cache blocks	a dedicated SSD cluster (3FS, ~100 PiB)	3 days for agent traffic, 7 for chat, reclaimed least-recently-used

Reported. A returning request finds its cached prefix by matching a chain of block hashes. The match happens before routing, so any prefill machine can use any cached prefix. Chat traffic gets the longer lifetime because a small amount of its cache is reread very many times; DeepSeek measured that a 3-day lifetime would cost chat 0.5–1% of its cache hit rate.

The hit rule shows how the tiers interact. Reported: for an input of length L, at most L − 134 tokens can come from cache (a 128-token window plus 6 tokens of slack for speculative decoding). The global blocks set the hit length. If the matching sliding-window state is missing, the server backs off one block and replays the last 128 tokens of the hit to rebuild it.

Derived (simplified, from the reported rule). An agent returns with a 10,000-token context. The cap is 9,866 tokens, which rounds down to 77 full blocks, or 9,856 tokens.

• If the window state is still in host memory, the server reuses 9,856 tokens and computes 144.
• If it was evicted, the server reuses 9,728 and computes about 400: 128 replayed plus 272 new.
• With no cache at all, it computes 10,000.

Derived. The window state that gets stored is a fixed size per sequence: 20 layers × 134 tokens × 528 bytes = 1,415,040 bytes, about 1.35 MiB however long the conversation. The global cache grows with length instead: at V4.1-Flash's reported 890 bytes per token, a 100,000-token context is about 89 MB.

The replay is approximate. Rebuilding the window from only 128 tokens gives back state that is close to, but not exactly, what the model originally computed. The V4.1-Flash Brief covers why that's acceptable and what it costs. For this Brief the point is narrower: Module 16 taught the cache as an exact memo, and a production cache is an exact memo only some of the time.

---

3. Sampling, reproducibly, in a crowd

Module 11's sampler is a pipeline: temperature, top-k, top-p, softmax, torch.multinomial. DeepInfer runs the same pipeline, fused into one GPU kernel per batch (fused_sample.py). The interesting changes are about reproducibility.

Whose random numbers?

Your generate takes one torch.Generator, and with one sequence that's enough for reproducibility. Put 64 requests through one generator and it breaks: each request's draw depends on where it sits in the batch and on who else is there. The same request with the same seed can produce a different answer because a stranger's request arrived first.

Derived, from the code. DeepInfer gives every request its own 64-bit seq_seed (sampling_params.py). The kernel then initializes a counter-based random generator from that seed and the token's position (rng_init(seed, position × 3 + k)). The offset k separates the three different uses of randomness at one position: 0 for an ordinary sample, 1 for a resample after a rejected draft, and 2 for the accept-or-reject coin flip. A request's random numbers therefore depend only on its own seed and position. Batch order and batch-mates no longer matter.

The repository tests exactly that property. It samples a batch, shuffles the rows and samples again, then samples every row alone, and asserts the tokens are identical each time (test_random_sampling_batch_invariant in random_sampling.py).

Derived, from the code. Two smaller details in the same kernel:

• The cumulative probabilities are summed in fixed-point integers, not floats, and the random target is drawn with rejection to avoid modulo bias. The docstring says this guarantees "a monotone fixed-point CDF." G2C interpretation: integer addition is associative, so the sampled token can't depend on the order in which threads add up probabilities. The next subsection explains why that matters.
• temperature = 0 is not special-cased as argmax. It is clamped to 1e-5 and goes down the sampling path, which for practical purposes always picks the top token. Your generate_cached branches to argmax instead. Both are reasonable; only one keeps a single code path.

Batch invariance: the floating-point problem

A per-request seed fixes the randomness. It does not fix the logits, and here a fact the course has been quietly working around comes forward: floating-point addition is not associative. In Python, (0.1 + 0.2) + 0.3 == 0.1 + (0.2 + 0.3) is False. A matrix multiply or an attention reduction sums many products. A GPU kernel picks how to split that sum across threads based on the shapes involved, including the batch size. Change the batch and the summation order changes, so the last bits of the logits change. Usually that's harmless. Occasionally it flips which token crosses a top-p threshold, or which way a near-tie goes, and from then on two runs of "the same" request diverge.

You have already met this. Module 16's test checks that your cached path matches the full forward pass with torch.allclose(cached, full, atol=1e-5), not torch.equal. The two paths do the same math in a different order, so they agree to five decimal places and not bit for bit.

Reported. DeepInfer offers batch-invariant inference (DEEPINFER_BATCH_INVARIANT=1, NVIDIA only): a request's logits come out bit-identical regardless of what else is in the batch. Derived, from the code. The switch puts DeepSeek's GEMM and kernel libraries into deterministic mode and turns off a fused kernel path in some attention layers. When experts are being reassigned between GPUs, it also restricts how the expert-parallel communication layer combines partial results. Its test generates 64 prompts as a batch, replays each one alone along the same tokens, and requires the tokens, log probabilities, and top-5 lists to match exactly.

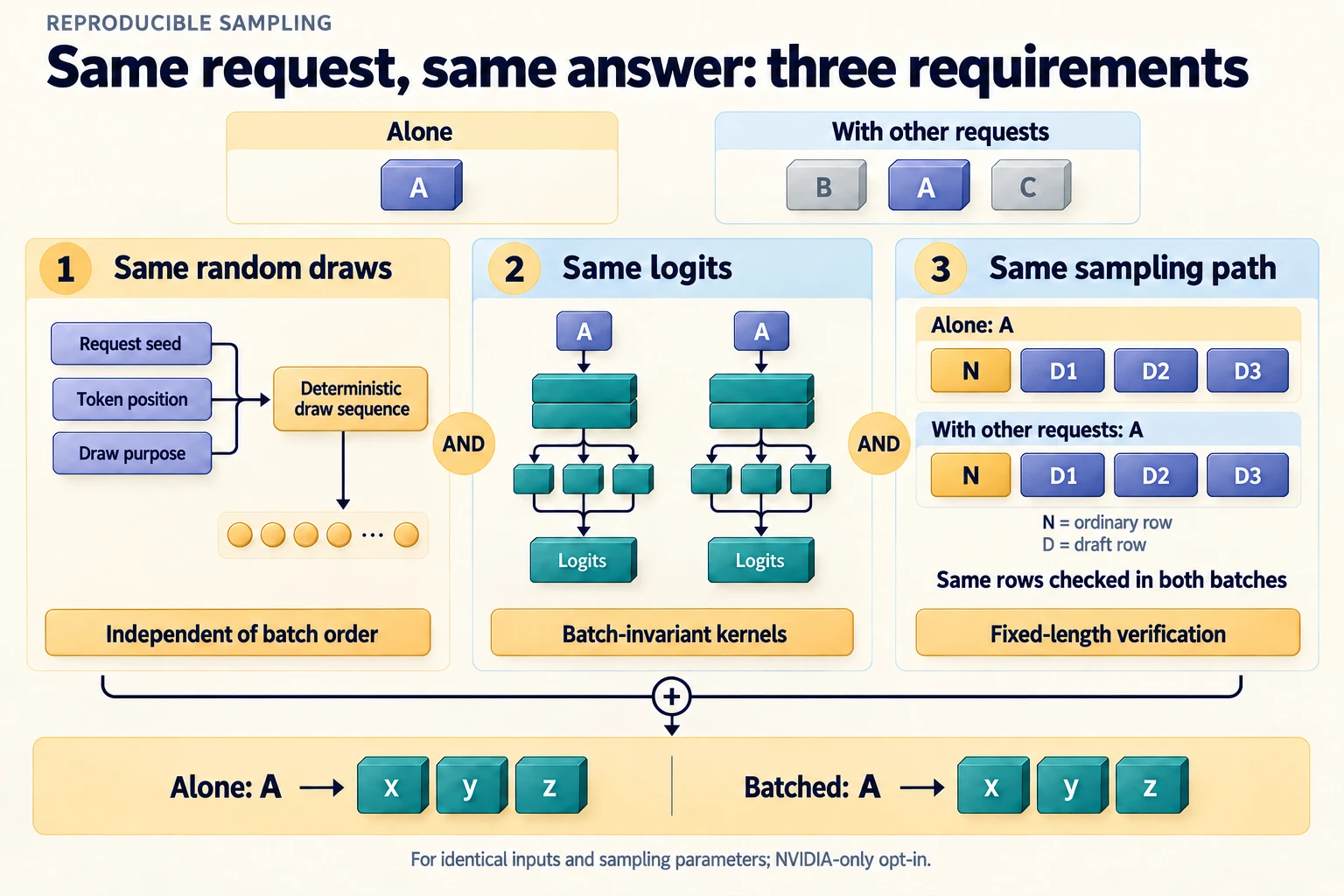

Reported. Fully deterministic sampling needs three things together: batch invariance, a fixed seq_seed, and fixed-length speculative verification (DEEPINFER_ENABLE_MTP_VARLEN=0). The next section explains the third requirement.

The seed controls only one source of variation. Reported: DeepInfer's deterministic-sampling mode requires all three conditions together. G2C interpretation: think of them as three separate contracts—random draws, numerical results, and sampling path. Section 4 explains why a shared verification budget breaks the third.

Not disclosed: how much throughput batch invariance costs. The README doesn't say, and it isn't on by default.

G2C interpretation. Why build this at all? Debugging, mostly. When a user reports a bad answer, you want to replay it and get the same answer. When you change a kernel, you want to tell real regressions from reordering noise. DeepInfer's test suite compares perplexity baselines "exactly, sample by sample," which only works if the numbers are reproducible. Batch invariance also matters for reinforcement learning: if the rollout engine and the trainer compute different probabilities for the same tokens, the policy gradient is quietly off.

---

4. Speculative decoding with a budget

Beyond: speculative decoding builds the core mechanism: a cheap drafter proposes several tokens, the target model scores them all in one pass, and stochastic verification accepts each draft with probability min(1, p_target / p_draft), resampling from the leftover mass max(p_target − p_draft, 0) at the first rejection.

Derived, from the code. DeepInfer's sampler implements that same rule. The kernel computes accept_lp = min(target_lp − draft_lp, 0), accepts when a uniform draw falls below exp(accept_lp), and on rejection samples from max(p_target − p_draft, 0). One small deviation: the draft probability in the residual is shrunk by a factor of exp(−5×10⁻⁵), with a comment saying this keeps "reject sampling" from coming up empty. G2C interpretation: that is a numerical guard. It moves the output distribution away from exact by an amount far below what any evaluation could detect, but strictly speaking it isn't zero.

The drafter is DSpark, which drafts up to five tokens. The V4.1-Flash Brief covers how it was trained. What's new here is the verification budget.

Not every draft is worth checking

Verification isn't free. Every draft token you verify is another row in the target model's forward pass. With fixed-length verification, every request pays for five draft rows every step, even when the drafter is guessing. A confidence head on the drafter predicts how likely each draft token is to be accepted, and the scheduler spends verification only where the expected return is highest.

Derived, from the code (csrc/engine/mtp_varlen.hpp and schedule_mtp_varlen.py). The planner works in four steps:

1. A draft token is only useful if every draft before it is also accepted, so its chance of mattering is the running product of the confidences: P(draft i survives) = c₁ × c₂ × … × cᵢ.
2. Pool every (request, draft position) pair in the batch and sort by that product.
3. Every request always gets one row for its ordinary next token. Then add draft rows in sorted order. At each total, divide the expected tokens produced by the predicted step time. The step time comes from a profiled curve, corrected online with running medians of measured step times.
4. Keep the total with the best expected throughput.

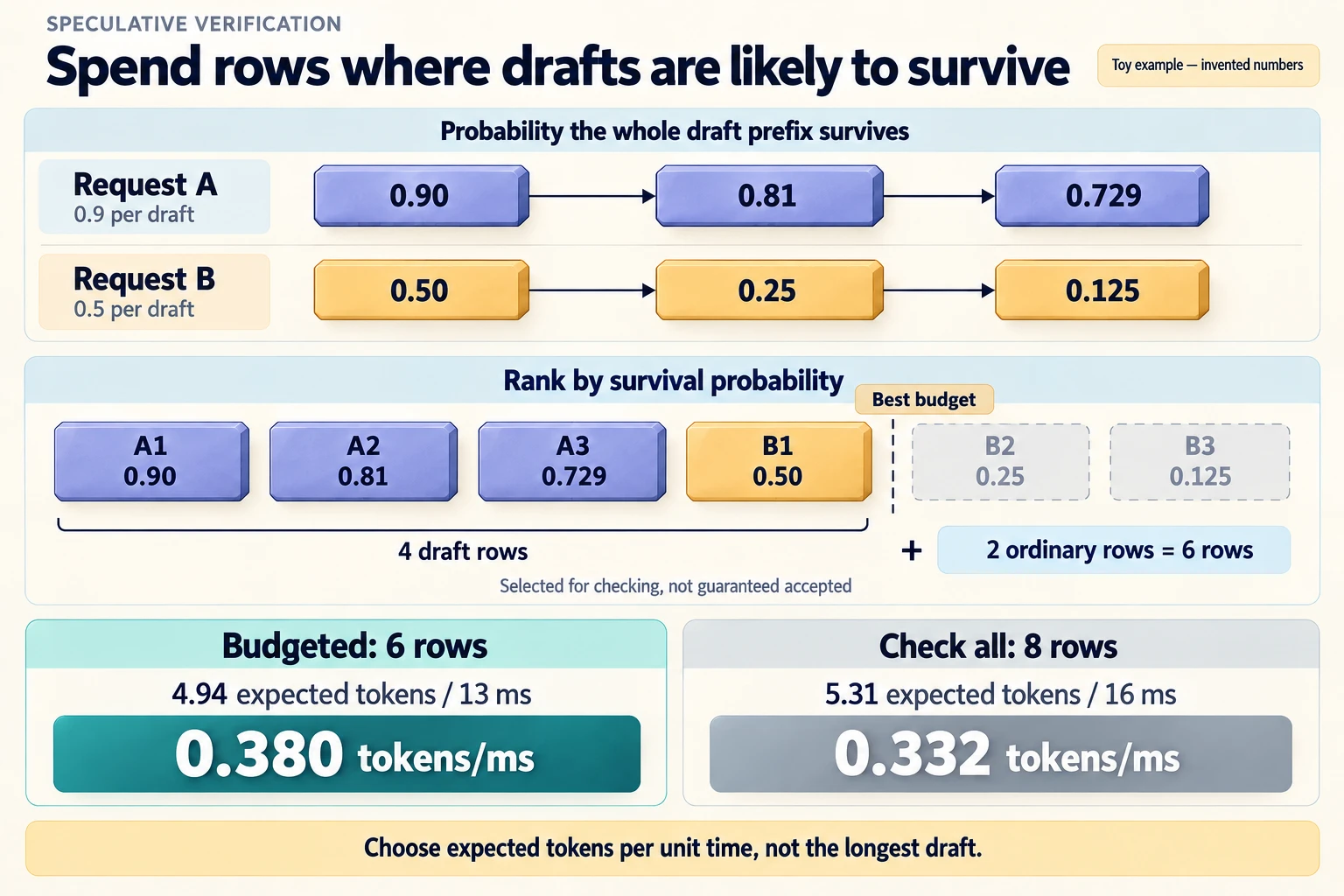

A toy version with invented numbers shows the shape of the decision. Two requests share a step. Request A's drafter is confident (0.9 per token) and B's is not (0.5). Suppose a step takes 10 ms for up to 4 rows, 13 ms for up to 6, and 16 ms for up to 8.

Rows	Rows added	Expected tokens	Step time	Tokens per ms
2	one ordinary row each	2.00	10 ms	0.200
3	A's draft 1 (0.9)	2.90	10 ms	0.290
4	A's draft 2 (0.81)	3.71	10 ms	0.371
5	A's draft 3 (0.729)	4.44	13 ms	0.342
6	B's draft 1 (0.5)	4.94	13 ms	0.380
7	B's draft 2 (0.25)	5.19	16 ms	0.324
8	B's draft 3 (0.125)	5.31	16 ms	0.332

Derived. The planner verifies 6 rows: A gets all three drafts, B gets one. Fixed-length verification of all eight rows would produce 5.31 tokens in 16 ms (0.332 per ms), about 13% less.

Read the probabilities as prefixes: A's third draft matters only if all three survive. Derived from the invented example above: the best budget checks four draft rows plus two ordinary rows. It produces fewer expected tokens per step than checking everything, but more per unit time. The cutoff comes from evaluating candidate budgets against step time; these are teaching numbers, not DeepInfer measurements.

Reported. In production the drafter proposes 5 tokens. At about 60 requests per GPU, the real numbers are:

	Fixed 5	Budgeted
Draft tokens verified per step	5.00	3.58
Accepted length	3.30	3.21
Estimated throughput (tok/s per GPU)	13,730	14,466 (+5.4%)

Derived. Under fixed-length verification, 66% of verified tokens are accepted (3.30 of 5). Under the budget, 90% are (3.21 of 3.58). The Q&A's full table shows the gain growing with load: −1.5% at 16 requests per GPU and +11% at 96. G2C interpretation: that pattern is the decode chart again. At low load, extra rows are nearly free, so verifying everything costs little. At high load, each row competes with other users' work.

G2C interpretation. The confidence head is a calibration problem from Module 15. The planner treats cᵢ as a probability and multiplies it. If the head is overconfident, the planner verifies drafts that won't survive; if it's underconfident, it leaves free tokens behind. The head doesn't need to be accurate in the usual sense. It needs its 0.7 to mean 70%.

Why the budget breaks determinism

G2C interpretation, from the code. Step 2 pools candidates across the whole batch, so how many drafts your request gets verified depends on everyone else's confidence. That changes which path produces a given token: an accepted draft (coin flip at offset 2), a resample after rejection (offset 1), or an ordinary sample (offset 0). Each path draws a different random number, so the token can differ depending on batch-mates. Fixed-length verification gives every request the same path regardless of the batch, which is why deterministic sampling requires it.

---

5. Where text becomes tokens

The same grammar mask, compiled elsewhere

Module 18's constrained decoding sets every logit that would break the grammar to −∞ before sampling. DeepInfer does the same with a token bitmask from the XGrammar library, applied inside the sampler (Derived, from the code). Two production changes:

• Reported. Compiling a JSON schema or grammar into an automaton is slow, so it runs asynchronously on dedicated machines. A request picks up the compiled result before it enters the engine, and decoding never waits on a compiler.
• Derived, from the code. A grammar can be given trigger_token_ids. Generation is free until that token sequence appears, and the grammar takes over from there. G2C interpretation: that's what a tool call needs. The model writes prose or reasoning freely, and once it emits the tool-call marker, the arguments are held to the schema. It is Module 18's two channels, enforced by the sampler.

Special tokens, and who gets to type them

Module 04 insists that special tokens be atomic: "If the text contains <|assistant|>, the tokenizer should emit one reserved ID." For a chat template you wrote yourself, that's right.

Now imagine that text came from a user, or from a web page a tool fetched. If the tokenizer turns a user-typed <|assistant|> into the real reserved ID, the user has forged a role boundary. That's a stronger version of the prompt injection Module 18 warns about. The injected instruction doesn't just claim authority, it arrives in the model's own control channel.

Reported. deepseek-recipe closes this hole by construction. When it builds a prompt, it records where it inserted special tokens and maps only those to reserved IDs. The same strings appearing in user input, tool results, or tool arguments are encoded as ordinary text. Output parsing works the same way in reverse: the end-of-reasoning marker and tool-call tags are recognized by token ID, so a model that spells </think> out of ordinary tokens doesn't end its reasoning.

G2C interpretation. Module 04's rule needs a qualifier at the trust boundary: special-token strings should be atomic in text you control, and inert everywhere else. Module 18 notes that prompts have no equivalent of a parameterized SQL query. Separating special tokens by provenance is the closest thing to one, and it only works at the token level.

Reported. Recipe also does something your tokenizer from Module 04 makes easy to understand. Since the special-token positions are known, the plain-text segments between them can be BPE-encoded independently and in parallel, which cuts tokenization time for very long prompts. Merges never cross a special token, so splitting there loses nothing. Streaming has the reverse problem: a byte-level tokenizer can split one UTF-8 character across two tokens, so the streaming parser buffers incomplete characters until the next token completes them.

---

6. Never let the GPU wait

One more piece of your decode loop changes. Each step of generate_cached calls .cpu() on the logits and .item() to check for end-of-sequence. Both force the CPU to wait until the GPU finishes. Then the GPU waits while Python decides what to do next. For one user on a laptop that gap is noise. For an engine running a step every 10–30 ms across 64 GPUs, it's a meaningful fraction of the step.

Reported. DeepInfer overlaps the two ("asynchronous scheduling," on by default, following SGLang and NanoFlow). While the GPU runs step N's forward pass and sampling, the CPU is already scheduling step N+1 and post-processing step N−1. Derived, from the code. The engine wraps the forward and sampling launch phases in a guard (forbid_cuda_sync) that catches CPU–GPU synchronization, so a stray .item() there shows up as an error, not a slowdown.

The overlap has a cost that ties back to Section 4. Reported: when the CPU schedules step N+1, step N's confidences haven't come back yet. So the CPU fixes only the total verification budget, using older confidences. A GPU kernel then splits that total among requests once the fresh confidences arrive. Hiding latency means deciding with slightly stale information.

---

The parts that are pure infrastructure

These are real and important, and the Q&A covers them in detail. They don't need the course to be understood, and the course doesn't help much with them. They're listed so you can recognize them when you see them:

• Expert parallelism and its load balancing. V4.1-Flash is a mixture-of-experts model. Reported: each GPU holds a few redundant copies of popular experts, and experts are periodically reassigned based on recent load. In decode, the busiest GPU carries about 9% more expert load than the average (moe_lb = 1.090). Beyond: MoE covers the training side of the same problem with an auxiliary loss. The serving side is placement, not learning.
• Request load balancing. Reported: prefill requests are bucketed by context length into four tiers. Decode requests are spread to balance both request count and total cache length per GPU. The whole system reaches about 80% of a perfectly balanced offline benchmark.
• Storage engineering. 3FS with 10+2 erasure coding (any 10 of 11 reads suffice), GPU-direct RDMA to move cache blocks into GPU memory without using compute cores, and per-layer transfers overlapped with computation.
• Low-precision formats. Reported: the main KV cache, the indexer cache, and the routed-expert weights are all stored in 4-bit floating point (an NVFP4-like format for the main cache, MXFP4 for the other two). Module 16's quantization section supplies the idea; the formats are hardware-specific.
• Fault tolerance and autoscaling. Reported: a decode engine being shut down gets a one-minute grace period, then forwards its unfinished requests and their caches to other engines.
• Kernels and hardware ports. FlashMLA, DeepGEMM, DeepEP, TileLang kernels, and a parallel Ascend implementation of most of them.

---

Reading the numbers

Reported. The Q&A gives two headline figures: 155 trillion tokens a day from one cluster, and revenue of US$38 per GPU-hour at off-peak ("valley") pricing. Neither can be checked from the release. The GPU count isn't stated, so tokens per GPU can't be derived. Revenue per GPU-hour is a business number, not a cost or efficiency measure.

The benchmark charts need a careful read, in the spirit of Beyond: speculative decoding's advice to "name the acceptance metric":

• Derived, from the plotting code (examples/sweep/plot_pareto.py). The decode chart's y-axis is not measured tokens. It is measured engine steps per second multiplied by τ = 1 + nextn × a, where a is an assumed acceptance rate passed on the command line. The published chart uses 3 draft tokens and a = 75%, so τ = 3.25. The plotting code refuses to apply τ to budgeted-verification runs, since those already reflect real acceptance. So the chart uses fixed-length verification, not the production configuration.
• G2C interpretation. The formula treats a as the average fraction of drafts accepted. If you read "per-token acceptance 75%" as "each draft survives with probability 0.75 given that the previous one did," the expected tokens per step would be 1 + 0.75 + 0.75² + 0.75³ ≈ 2.73, about 16% lower. The chart's subtitle doesn't say which reading is meant.
• Reported. The budgeted-verification throughput table is "computed from EP64/DP64 benchmark data," which means estimated, not measured end to end in production.

None of this makes the numbers wrong. They are engineering benchmarks published by the people who built the system, with their assumptions printed in the subtitles. A g2c graduate can now read those subtitles.

---

Where informed readers will push back

• The most distinctive parts aren't in the code. The 72-hour cache, the hash-chain prefix matching, the load balancers, and the split across machines are described in the Q&A and the Zhihu post, but not released. What you can read is an excellent single-deployment engine. What you can't read is most of what makes the service cheap. DeepSeek says this plainly: those components are "tightly coupled to our internal infrastructure."
• One model, two chips. DeepInfer supports only V4.1-Flash, on SM100 or Ascend 950. It isn't a general-purpose engine like vLLM or SGLang, and the April 2025 note's maintenance concern hasn't gone away. Whether outside contributors can extend it is an open question.
• Approximations stack up. Bounded replay rebuilds window state approximately. The speculative residual carries a tiny guard term. FP4 caches quantize the stored keys and values. Each is defensible on its own. Not disclosed: any end-to-end measurement of how far production outputs sit from an exact, uncached, full-precision run of the same model.
• Determinism is opt-in and partial. Batch invariance is off by default, NVIDIA-only, and its cost isn't stated. Production traffic presumably runs without it, with budgeted verification on, so production sampling is not reproducible request by request. That's the normal trade-off; it's worth knowing that it's being made.
• Self-reported throughput. Every performance number comes from DeepSeek, on hardware few readers can access, and some are estimates rather than measurements.

---

The laptop boundary, and what you can check yourself

You can't run DeepInfer. It needs SM100 or Ascend 950 hardware, CUDA 13 or CANN 9.2, and in practice dozens of accelerators. Nothing here asks you to.

What you can do is reproduce the mechanisms on your own models. Each of these sketches is optional and ungraded.

Watch floating-point order matter. This takes a few seconds on any machine:

import torch
torch.manual_seed(0)
x = torch.randn(100_000)
a = x.sum()
b = x.view(1000, 100).sum(1).sum()        # same numbers, different grouping
print(torch.equal(a, b), (a - b).item())  # usually False, with a tiny difference

Test your own model for batch invariance. Run one prompt alone, then stacked with other prompts of the same length (so there's no padding), and compare the last-position logits exactly. This uses the Module 10 TransformerLM (any course TransformerLM artifact works):

from g2c.artifacts import load_model_artifact_with_tokenizer
model = load_model_artifact_with_tokenizer("TinyLLM-30M-base").model.eval().to(device)

a = torch.randint(0, model.vocab_size, (64,), device=device)
others = torch.randint(0, model.vocab_size, (31, 64), device=device)
with torch.no_grad():
    alone = model(a[None])[0, -1]
    for B in (2, 8, 32):
        together = model(torch.cat([a[None], others[:B - 1]]))[0, -1]
        print(B, torch.equal(alone, together), (alone - together).abs().max().item())

In one run on an M-series Mac, CPU results matched bit for bit at every batch size, and MPS results differed from the single-prompt run by about 1e-5 at every batch size. Your hardware and PyTorch version may behave differently, and that's the point: whether batch size changes your logits is a property of the kernels, not the model.

Make sampling independent of batch order. One shared generator ties each request's draw to its position in the batch. A generator keyed by the request's own seed and position doesn't:

probs = torch.softmax(torch.randn(4, 50) * 3, -1)    # four requests' distributions
perm = [2, 0, 1, 3]                                   # the same requests, reordered

g = torch.Generator().manual_seed(0)
batched = torch.multinomial(probs, 1, generator=g).squeeze(1)
g = torch.Generator().manual_seed(0)
reordered = torch.multinomial(probs[perm], 1, generator=g).squeeze(1)
print(batched[perm].tolist(), reordered.tolist())    # generally different

def keyed_sample(p, seq_seed, position):               # DeepInfer's idea, in miniature
    g = torch.Generator().manual_seed(seq_seed * 1_000_003 + position)
    return torch.multinomial(p, 1, generator=g).item()

Calling keyed_sample row by row gives the same tokens in any order.

Run the verification planner. The toy table in Section 4 is about 20 lines of plain Python: compute running products of confidences, sort, add rows, and keep the best tokens per millisecond. Try it with the acceptance statistics your own drafter produces in Beyond: speculative decoding, and with a step-time curve measured on your machine. You'll likely find the curve is nearly flat at laptop batch sizes, which says the budget matters much less for one user than for a server.

---

Coverage map

Mechanism	Coverage	Where
KV cache as an exact memo of past keys and values	Built in g2c	Module 16
Temperature, top-k, top-p, multinomial sampling	Built in g2c	Module 11
Speculative decoding: draft, verify, accept, resample	Built in g2c	Beyond: speculative decoding
Grammar-masked decoding	Built in g2c	Module 18
Atomic special tokens, chat templates	Built in g2c	Module 04, Module 13
Prefill vs decode cost	Built in g2c	Module 16
Batching many users' decode steps to trade per-user speed for throughput	Conceptual bridge	Module 16's prefill and decode section
Per-request, position-keyed random seeds	Conceptual bridge	Module 11's generator argument
Confidence head feeding an expected-value budget	Conceptual bridge	Module 15 calibration; Beyond: speculative decoding's accounting
Special tokens inert in untrusted text	Conceptual bridge	Module 04's atomic tokens plus Module 18's prompt injection
Expert load balancing	Conceptual bridge	Beyond: MoE (training side only)
FP4 cache and weight formats	Conceptual bridge	Module 16's quantization section
Continuous batching, chunked prefill, preemption	Not yet covered	—
Paged KV blocks, reference counts, copy-on-write forks	Not yet covered	—
Persistent prefix caching across requests	Not yet covered	—
Batch invariance and floating-point reduction order	Not yet covered	Module 16's atol=1e-5 test is where it shows up
Asynchronous CPU/GPU scheduling	Not yet covered	—
Prefill/decode disaggregation, cluster load balancing, storage	Not yet covered	—

G2C note. Continuous batching and paged KV caches recur across every major open serving stack (vLLM, SGLang, TensorRT-LLM, and now DeepInfer), and a toy version (a block allocator plus a batch scheduler over the course's TransformerLM) would fit on a laptop. That's evidence for a future Beyond module, not a commitment to one.

---

A reading route

1. This Brief's Sections 1–3 against your own generate_cached and Module 16 cache. Ask, at each step, what would break with 64 users.
2. block_manager.hpp, start to finish. It's short, and it's the cleanest file in the release.
3. The deployment Q&A's "KV cache storage" and "Speculative decoding" sections. Skim the rest.
4. test_random_sampling_batch_invariant in random_sampling.py. A 20-line test that states the reproducibility contract exactly.
5. The verification planner at the end of mtp_varlen.hpp (update_best), next to this Brief's toy table.
6. The DeepSeek V4.1-Flash Brief if you want the model side: why the cache is so small, and what bounded replay gives up.

Comments in the C++ and some Python files are in Chinese. The code is readable without them, and a translation tool handles them well.

---

After this Brief, you should be able to

• Explain why the same model needs different hardware for prefill and decode, using the step times in DeepInfer's own charts.
• Describe how paged KV blocks with reference counts let a server fork one prompt into many samples without copying its cache.
• Work out how much of a returning request a prefix cache saves, given the hit rule.
• Explain why a shared random generator makes sampling depend on batch-mates, and how a seed keyed by request and position fixes it.
• Say why floating-point reduction order makes "the same request" produce different logits in different batches, and point to where the course's own tests already allow for it.
• Compute which draft tokens a budgeted verifier should check, and explain why the confidence head has to be calibrated.
• Explain why user text must never be able to produce a reserved special token, and how provenance-based encoding prevents it.
• Read a vendor's throughput chart and find the assumption that sets its y-axis.
